Product No. 2030

Stepped Side Clamp Set

DE: Seitenspanner-Set abgestuft

Stepped Side Clamp Set — ER-EL product photo

• When it clamps the workpiece towards the stopper, it does not change the original shape of the workpiece • Hardened • Black coated • Set in a plastic case

3D Preview — rotate with the mouse

Catalog page (PDF) ↗

Technical Data

Dimensions and variants

7 variant · 16 dimension column

Buy

• When the product clamps the work piece in the direction of rest, it does not cause alteration in the genuine structure of the piece. • Hardened • Black coating • Set is in the plastic box

Technical dimension table for Stepped Side Clamp Set. The dimension letters refer to the product's technical drawing.
Order No.	>a<	c	L	b	n	k	k1	k2	L1	d	d1	d2	sw	clamping force Kgf	Allowable Screw Torque (N-m) (N-m)	(g) (g)	Data
2030-14	14	5	90	23	47	47	26	26	65	M12	M12	M12	10	2000	35	3490	Download
2030-16	16	5	90	23	47	47	26	26	65	M12	M12	M12	10	2000	35	3670	Download
2030-18	18	5	95	28	57	52	26	26	65	M12	M12	M12	10	2000	35	5000	Download
2030-20	20	5	95	28	57	52	26	26	65	M12	M12	M12	10	2000	35	5355	Download
2030-22	22	5	95	28	57	52	26	26	65	M12	M12	M12	10	2000	35	5720	Download
2030-24	24	5	95	28	57	52	26	26	65	M12	M12	M12	10	2000	35	6190	Download
2030-28	28	5	95	28	57	52	26	26	65	M12	M12	M12	10	2000	35	6650	Download

Dimension letters (a, b, L, h …) refer to the product's technical drawing. You can scroll the table sideways. Each Download button downloads only the data of that variant and uses one download credit.

Catalog page

Open in a new tab ↗ Download PDF ↓

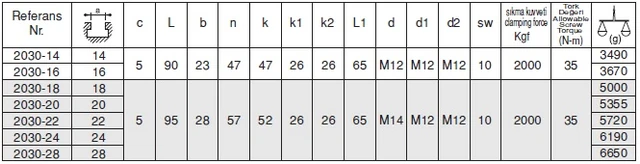

Show the printed table from the catalog
