Product No. 1486
Outside Diameter Clamp
- DE
- Spanner Außendurchmesser
3D Preview — rotate with the mouse
Catalog page (PDF) ↗Technical Data
Dimensions and variants
2 variant · 18 dimension column
• Jaw: S17C steel, fluoroplastic coated
• Cap: A6061 aluminum, hard anodized
• Collet-shaped jaws generate high clamping force
• The machinable jaw can clamp any shape of workpieces and hold long workpieces with a wide clamping area by machining completely through
• Machine the jaw to the workpiece diameter with attention to the Recommended Jaw Compression
• Do not tighten the cap without the workpiece to prevent damage and deformation
| Order No. | Adaptable Workpiece Dia* | D1 | H1 | h | H2 | D (-0.05) (mm) | D2 | m | L | Dp | D3 (mm) | H3 | d | Clamping Force (kN) (kN) | Allowable Tightening Torque (N.m) (N-m) | Recommended Jaw Compression | Allowable Jaw Compression | g | Data |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1486-MBOD1 | Ø2.5 - Ø15.9 | 19.1 | 22.9 | 35.6 | 4.6 | 23.9 | 38.1 | M3x0.5-16L | 6.8 | 29 | 50.8 | 25.4 | 20.1 | 17.3 | 81.5 | 0.07 | 0.38 | 200 | Not yet available |
| 1486-MBOD2 | Ø5.1 - Ø45.7 | 49.5 | 32.4 | 48.3 | 5.1 | 55.9 | 76.2 | M5x0.8-22L | 11.1 | 63.8 | 88.9 | 36.2 | 50.5 | 17.8 | 135.5 | 0.1 | 0.64 | 960 | Not yet available |
Dimension letters (a, b, L, h …) refer to the product's technical drawing. You can scroll the table sideways. Each Download button downloads only the data of that variant and uses one download credit.

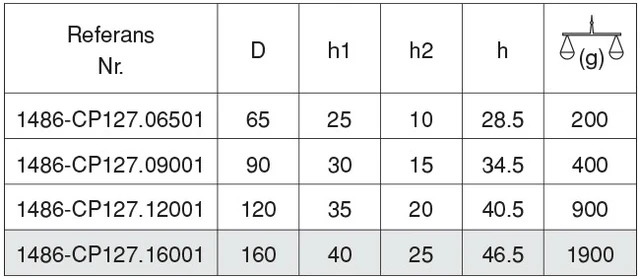

Catalog page
Show the printed table from the catalog
Click to enlarge.
