Product No. 1390
Bifurcated Clamp
- DE
- Gabelspanneisen
• Thanks to its design, the clamp makes it easy to clamp shaped workpieces on stepped surfaces • Hardened • Black coated
3D Preview — rotate with the mouse
Catalog page (PDF) ↗Technical Data
Dimensions and variants
12 variant · 10 dimension column
Buy| Order No. | b1 | L1 | metric | Whitworth | >a< | b2 | b3 | L2 | L3 | g | Data |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1320-08100 | 9 | 100 | M8 | 5/16 | 15 | 30 | 16 | 32 | 18 | 240 | Download |
| 1320-10125 | 11 | 125 | M10 | 3/8 | 20 | 30 | 20 | 38 | 24 | 380 | Download |
| 1320-12160 | 14.5 | 160 | M12-M14 | 1/2 | 25 | 40 | 24 | 47 | 30 | 800 | Download |
| 1320-12200 | 14.5 | 200 | M12-M14 | 1/2 | 25 | 40 | 24 | 47 | 30 | 950 | Download |
| 1320-16200 | 18.5 | 200 | M16-M18 | 5/8 | 30 | 50 | 28 | 57 | 36 | 1500 | Download |
| 1320-16250 | 18.5 | 250 | M16-M18 | 5/8 | 30 | 50 | 28 | 57 | 36 | 1850 | Download |
| 1320-20250 | 22.5 | 250 | M20-M22 | 3/4 | 40 | 60 | 35 | 68 | 45 | 2900 | Download |
| 1320-20315 | 22.5 | 315 | M20-M22 | 3/4 | 40 | 60 | 35 | 68 | 45 | 3600 | Download |
| 1320-24250 | 26 | 250 | M24 | 1 | 40 | 70 | 43 | 83 | 56 | 3400 | Download |
| 1320-24315 | 26 | 315 | M24 | 1 | 40 | 70 | 43 | 83 | 56 | 4300 | Download |
| 1320-30315 | 33 | 315 | M30 | 1 ¼ | 50 | 80 | 50 | 88 | 56 | 6000 | Download |
| 1320-30400 | 33 | 400 | M30 | 1 ¼ | 50 | 80 | 50 | 88 | 56 | 7300 | Download |
Dimension letters (a, b, L, h …) refer to the product's technical drawing. You can scroll the table sideways. Each Download button downloads only the data of that variant and uses one download credit.

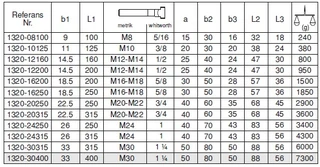

Catalog page
Show the printed table from the catalog
Click to enlarge.
